Jandy/Zodiac - Heater Parts - LXi Model Pool/Spa Heater
SELECT YOUR PART BELOW
Below you'll find a consolidated list of the replacement parts for the Jandy/Zodiac LXi Model Pool/Spa Heater.
Overall Inventory
| Central Warehouse | In Stock |
Please Note: Products might not be available at all locations.

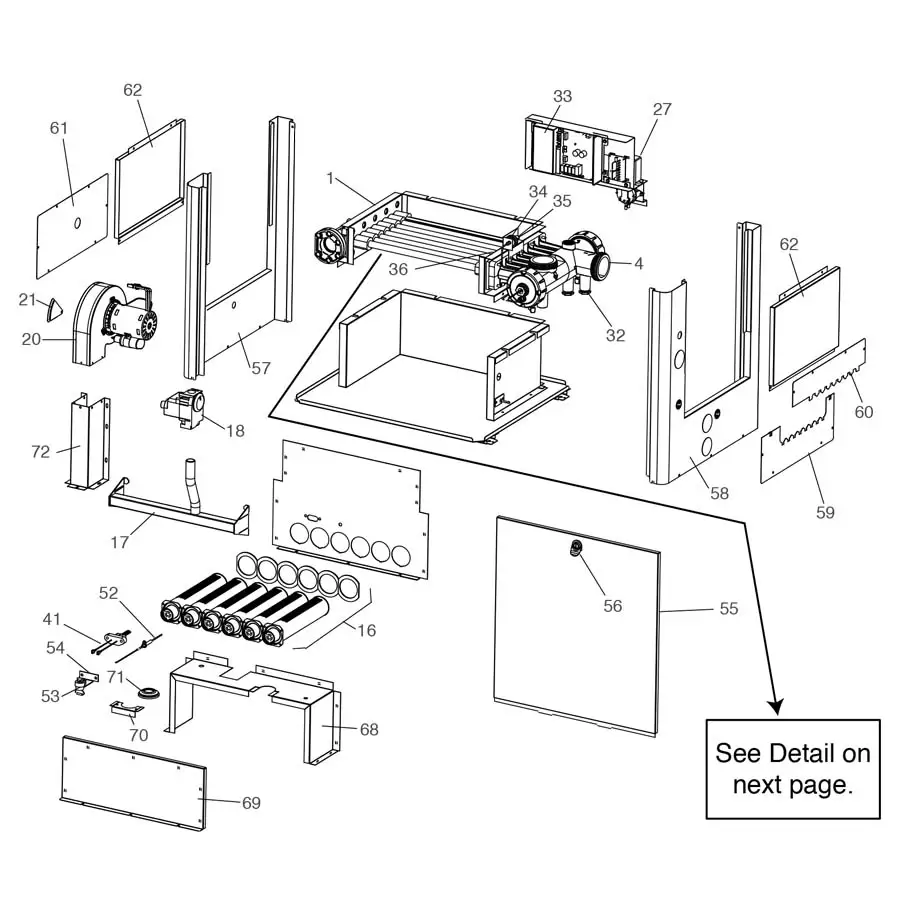

Jandy/Zodiac - Heater Parts - LXi Model Pool/Spa Heater
| Key | SKU / Part # | Name | Price |
|---|---|---|---|
| 1 | PTS-R0453303 | Jandy Complete Heat Exchanger (Cu)250 | 2961.99 |
| 1 | PTS-R0453305 | Jandy Complete Heat Exchanger (Cu)400 | 3579.99 |
| 2 | PTS-R0453403 | Jandy Tube Assembly, With HardWare And Gaskets (Cu) 250 | 2619.99 |
| 2 | PTS-R0453405 | Jandy Tube Assembly, With Hardware And Gaskets (Cu) 400 | 3503.99 |
| 2 | PTS-R0477003 | Jandy Header, Tube (Cuni) ASME 250 | 2668.99 |
| 2 | PTS-R0477005 | Jandy Header, Tube (Cuni) ASME 400 | 3616.99 |
| 3 | PTS-R0453503 | Jandy Heat Exchanger End Baffles LXI 250 | 248.99 |
| 3 | PTS-R0453505 | Jandy Heat Exchanger End Baffles, LXI 400 | 277.99 |
| 4 | PTS-R0453600 | Jandy Header, In/Out Lxi Polymer Replacement Kit | 1375.99 |
| 5 | PTS-R0453700 | Jandy Bypass Assembly. Polymer, Model All, LRZE And LRZM | 87.99 |
| 6 | PTS-R0453800 | Jandy Hardware And O-Ring, Bypass Replacement Kit. Model All, LRZE, LRZM | 105.99 |
| 7 | PTS-R0453900 | Jandy Bypass Spring, Adjustable, Polymer Model All, LRZE And LRZM | 63.99 |
| 8 | PTS-R0454000 | Jandy 3" Coupling Nut With O-Ring Model All, LRZE And LRZM | 93.99 |
| 9 | PTS-R0449000 | Jandy Tail Piece (2" by 2"), PHPF/PHPM, MHPM | 74.99 |
| NS | PTS-R0454100 | Jandy Universal Union Kit O-Rings Set of 2 | 16.99 |
| 10 | PTS-R0454200 | Jandy Header Assembly, Polymer Model All, LRZE, LRZM | 370.99 |
| 11 | PTS-R0454300 | Jandy Gasket, Header LXI/Legacy, Replacement Kit | 41.99 |
| 12 | PTS-R0446000 | Jandy Drain Plug LRZE/LRZM, FHP, VS-FHP | 13.99 |
| NS | PTS-R0454500 | Jandy Heat Exchanger | 229.99 |
| 14 | PTS-R0455400 | Jandy Cap Sensor/Press Switch Without O-Ring Model All, LRZE And LRZM | 63.99 |
| 15 | PTS-R0454600 | Jandy Rear Header Cap And O-Ring | 51.99 |
| NS | PTS-R0501003 | Jandy Heat Exchanger, Polymer, Cuni 250, LXI, Replacement Kit | 3403.99 |
| NS | PTS-R0501005 | Jandy Complete HX Assembly, Polymer, CuNi, LXi400 | 3999.99 |
| 16 | PTS-R0454700 | Jandy Burner With Gasket | 133.99 |
| 16 | PTS-R0454701 | Jandy Burner with tap and gasket, LXI, all LXI Replacement Kit | 153.99 |
| 17 | PTS-R0454803 | Jandy Manifold, N, 250 | 545.99 |
| 17 | PTS-R0454804 | Jandy Manifold, N, 300 | 594.99 |
| 17 | PTS-R0454805 | Jandy Manifold, N, 400 | 633.99 |
| *17 | PTS-R0455003 | Jandy Manifold, P, 250 | 571.99 |
| *17 | PTS-R0455005 | Jandy Manifold, P, 400 | 633.99 |
| 18 | PTS-R0455200 | Jandy Gas Valve Natural With Street Elbow, LXI Replacement | 556.99 |
| 18 | PTS-R0455300 | Jandy Gas Valve LP With Street Elbow, LXI Replacement Kit | 556.99 |
| 19 | PTS-R0455503 | Jandy Flue Collector With Gasket , 250 | 175.99 |
| 19 | PTS-R0455504 | Jandy Flue Collector With Gasket , 300 | 193.99 |
| 19 | PTS-R0455505 | Jandy Flue Collector With Gasket , 400 | 212.99 |
| 20 | PTS-R0455600 | Jandy Blower Assembly. With Gskts Replacement Kit | 1253.99 |
| 21 | PTS-R0455700 | Jandy Blower Hardware And Gaskets | 20.99 |
| 22 | PTS-R0455803 | Jandy Flue Vent Assembly With Gasket (before 7-2009), LXi 250 | 149.99 |
| 22 | PTS-R0495503 | Jandy Flue vent Assembly With Gasket (after 7-2009), LXI 250 | 153.99 |
| 22 | PTS-R0495505 | Jandy Flue vent Assembly With Gasket (after 7-2009), LXI 400 | 170.99 |
| 23 | PTS-R0495401 | Jandy Hot plate, Split Plate (after 7-2009), LXi, 250/300 | 47.99 |
| 23 | PTS-R0495402 | Jandy Hot plate, Split Plate (after 7-2009), LXi, 400 | 49.99 |
| NS | PTS-R0456100 | Jandy Vent Hardware Kit | 41.99 |
| 25 | PTS-R0456200 | Jandy Flue Box Assembly With Gasket | 197.99 |
| 26 | PTS-R0524300 | Jandy Vent Limit Switch | 21.99 |
| 27 | PTS-R0456300 | Jandy Transformer | 218.99 |
| 28 | PTS-R0456400 | Jandy Air Pressure Switch | 212.99 |
| 29 | PTS-R0456500 | Jandy Temperature Sensor Kit | 178.99 |
| 30 | PTS-R0456600 | Jandy Gasket, Temperature Control Bulb, Model All, LRZM & LRZM | 4.99 |
| 32 | PTS-R0523900 | Jandy Mounting Plug, Temperature Sensor | 8.99 |
| 33 | PTS-R0456900 | Jandy Ignition Control Transformer | 728.99 |
| 34 | PTS-R0457000 | Jandy Pressure Switch Assembly Replacement Kit | 133.99 |
| 35 | PTS-R0013200 | Jandy Water pressure switch only kit | 143.99 |
| 36 | PTS-R0457100 | Jandy Pressure Switch Tubing | 23.99 |
| 37 | PTS-R0457200 | Jandy High Limit, Set Replacement Kit. Model All, LRZE and LRZM | 147.99 |
| 38 | PTS-R0457300 | Jandy High Limit, 130 Degree F Replacement Kit, LRZE and LRZM LRZE and LRZM | 71.99 |
| 39 | PTS-R0023000 | Jandy High-Limit Switch,150Degree F Replacement Kit Model All, LRZE and LRZM Model All, LRZE And LRZM | 71.99 |
| 39A | PTS-R0456800 | Jandy Mtg Plug, Temperature Sensor, Model All, LRZE & LRZM | 8.99 |
| 40 | PTS-R0457400 | Jandy High-Limit Switch Assembly, Model All, LRZE | 78.99 |
| 41 | PTS-R0457500 | Jandy Ignitor Kit | 214.99 |
| NS | PTS-R0457600 | Jandy Wire Harness, Complete | 357.99 |
| NS | PTS-R0457700 | Jandy Controller Wire Harness | 84.99 |
| NS | PTS-R0457800 | Jandy Pressure Switch Wire Harness | 66.99 |
| NS | PTS-R0457900 | Jandy Safety Circuit Wire Harness | 66.99 |
| NS | PTS-R0460400 | Jandy Air Pressure Switch Wire Harness | 66.99 |
| 47 | PTS-R0458100 | Jandy Power Center PCB | 205.99 |
| 48 | PTS-R0458200 | Jandy Power Distribution PCB Kit | 940.99 |
| 49 | PTS-R0458300 | Jandy Lxi Control, User-Interface And Gasket | 879.99 |
| 50 | PTS-R0458400 | Jandy Cover, User Interface Replacement Kit | 190.99 |
| NS | PTS-R0458500 | Jandy Gasket, display bezels, LXI, All | 24.99 |
| 52 | PTS-R0458600 | Jandy Flame Sensor Rod Replacement Kit Model All, LXI | 135.99 |
| 53 | PTS-R0012200 | Jandy Fusible Link Assembly, Replacement Kit Model All, LRZE/LRZM | 17.99 |
| 54 | PTS-R0337200 | Jandy Fusible Link Bracket Model All, LRZE And LRZM | 15.99 |
| 55 | PTS-R0458703 | Jandy Door with latch, LXI, 250 BTU | 294.99 |
| 55 | PTS-R0458705 | Jandy Door With Latch, LXI, 400 BTU | 315.99 |
| 55 | PTS-R0334900 | Jandy Latch Assembly, Model All, LRZE And LRZM | 20.99 |
| 57 | PTS-R0458800 | Jandy Left Side Jacket Panel | 43.99 |
| 58 | PTS-R0458900 | Jandy Right Side Jacket Panel | 43.99 |
| 59 | PTS-R0459000 | Jandy In/Out Header Lower Panel | 24.99 |
| 60 | PTS-R0459100 | Jandy In/Out Header Upper Panel | 24.99 |
| 61 | PTS-R0459200 | Jandy Panel, return header side, LXI, All | 34.99 |
| 62 | PTS-R0459300 | Jandy Side Support Panel | 60.99 |
| 63 | PTS-R0459803 | Jandy Rear Panel, LXi 250 | 142.99 |
| 63 | PTS-R0459805 | Jandy Rear Panel, LXi 400 | 203.99 |
| 64 | PTS-R0459401 | Jandy Vent back cover, LXI, 250/300 | 38.99 |
| 64 | PTS-R0459402 | Jandy Vent back cover, LXI, 400 | 41.99 |
| 65 | PTS-R0459503 | Jandy Top Assembly, 250 | 458.99 |
| PTS-R0459505 | Jandy Top Assembly, 400 LXI 400, Replacement Kit | 522.99 | |
| PTS-R0495303 | Jandy Top Assembly (before 7-2009), LXI 250 | 470.99 | |
| PTS-R0495305 | Jandy Top Assembly (before 7-2009), LXI 400 | 534.99 | |
| PTS-R0459903 | Jandy Door Support Bracket, 250 | 78.99 | |
| PTS-R0459905 | Jandy Door Support Bracket, 400 | 78.99 | |
| PTS-R0460003 | Jandy Air Chamber Housing, 250 | 64.99 | |
| PTS-R0460005 | Jandy Housing, Air Chamber 400 | 68.99 | |
| PTS-R0460103 | Jandy Cover,Air Chamber LXI 250, Replacement Kit | 37.99 | |
| PTS-R0460105 | Jandy Cover,Air Chamber LXI 400, Replacement Kit | 40.99 | |
| PTS-R0460200 | Jandy Manifold Cover | 19.99 | |
| PTS-R0460300 | Jandy Grommet, Seal 2" Replacement Kit | 5.99 | |
| PTS-R0460500 | Jandy Air Duct | 43.99 | |
| PTS-R0476603 | Jandy Inlet/Outlet Header Assembly. Bronze, 2" Model 250, LRZE And LRZM | 2273.99 | |
| PTS-R0476605 | Jandy Inlet/Outlet Header Assembly, Bronze, 2" Model 400, LRZE&LRZM, LXI300 | 2176.99 | |
| PTS-R0476700 | Jandy Return Header Assy. Bronze, With 8 Gaskets, Model All, LRZE And LRZM | 826.99 | |
| PTS-R0477200 | Jandy Heat Exchanger Hardware Bronze, ASME, Replacement Kit. Model All, LRZE and LRZM, LXI | 123.99 | |
| PTS-R0476805 | Jandy Bypass Assembly, Bronze, Model 400, LRZE & LRZM, LXI | 113.99 | |
| PTS-R0476803 | Jandy Header, Bypass Assembly Model 250, LRZE/LRZM, LXI | 113.99 |
A consolidated list of the replacement parts for the Jandy/Zodiac LXi Model Pool/Spa Heater. If you're having trouble finding the parts you need, feel free to reach out to one of our representatives in the contact section below.
