Hayward - Pump Parts - Tristar VS
SELECT YOUR PART BELOW

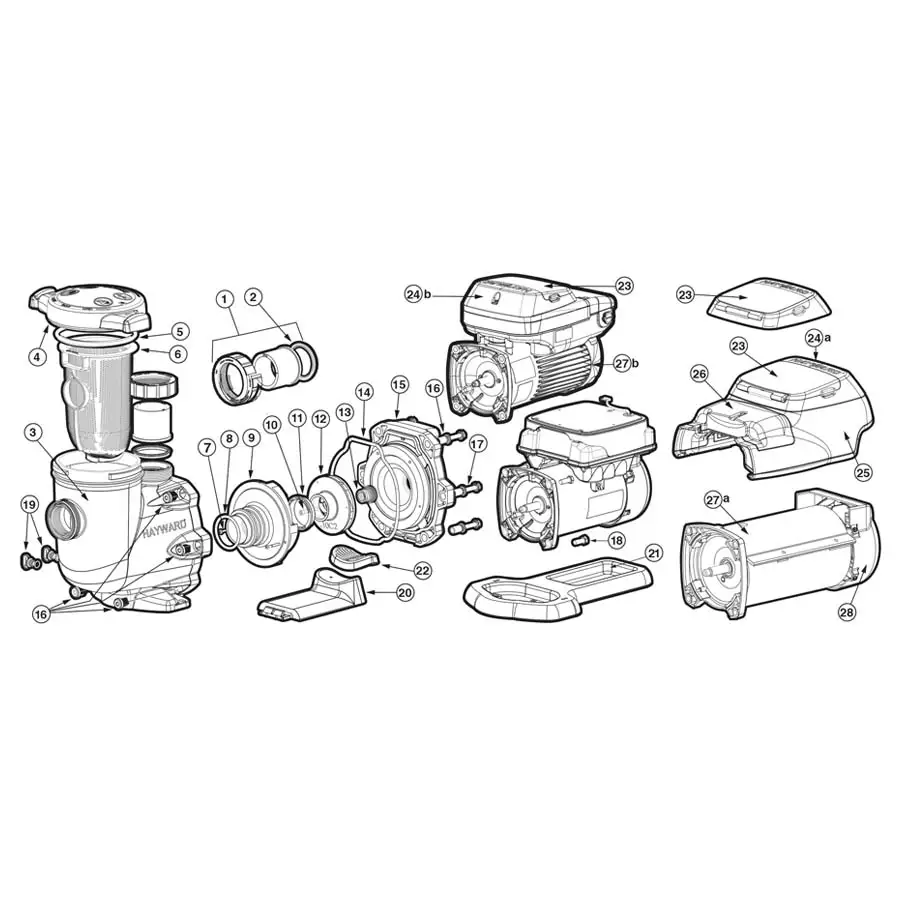

Below is a consolidated list of the replacement parts for the Hayward Tristar VS associated with model S23200VSP.
Overall Inventory
| Central Warehouse | In Stock |
Please Note: Products might not be available at all locations.
Hayward - Pump Parts - Tristar VS
| Key | SKU / Part # | Name | Price |
|---|---|---|---|
| 1 | PTS-SPX3200UNKIT | TRISTAR UNION CONN. KIT | 89.99 |
| 2 | PTS-SPX3200UG | UNION GASKET (T-SEAL) | 21.99 |
| 3 | PTS-SPX3200A | PUMP STRAINER HOUSING | 593.99 |
| 4 | PTS-SPX3200DLS | STR COVER KIT | 146.99 |
| 5 | PTS-SPX3200S | STRAINER COVER O-RING | 25.99 |
| 6 | PTS-SPX3200M | STRAINER BASKET | 31.99 |
| 7 | PTS-SPX3200Z8 | SCREW-DIFFUSER | 24.99 |
| 8 | PTS-SPX4000Z1 | UNION O-RING | 31.99 |
| 9 | PTS-SPX3200B3 | DIFFUSER-3HP | 71.99 |
| 10 | PTS-SPX3200Z1 | SCREW-IMPELLER | 13.99 |
| 11 | PTS-SPX3021R | IMPELLER RING | 13.99 |
| 12 | PTS-SPX3210C | IMPELLER-1HP W/SCREW | 64.99 |
| NS | PTS-SPX3220C | IMPELLER-2HP W/SCREW | 91.99 |
| 13 | PTS-SPX3200SA | SHAFT SEAL ASSY. | 47.99 |
| 14 | PTS-SPX3200T | O-RING-HOUSING | 16.99 |
| 15 | PTS-SPX3200E | SEAL PLATE | 96.99 |
| 16 | PTS-SPX3200Z211 | KIT-HOUSING INSERT&SEAL PLATE | 43.99 |
| 17 | PTS-SPX3200Z3 | BOLT-HOUSING | 8.99 |
| 19 | PTS-SPX4000FG | DRAIN PLUG W/GASKET | 9.99 |
| NS | PTS-SPX3200SR | BASE, TALL RISER | 74.99 |
| 22 | PTS-SPX3200Q2 | ADAPTER-MOTOR SUPPORT, TRISTAR VS PUMP | 19.99 |
| 23 | PTS-SPX3400DR4 | COVER-DISPLAY, VAR SPD PUMP | 72.99 |
| 24A | PTS-SPX3400LCD | DISPLAY-VAR SPD PUMP | 865.99 |
| 24B | PTS-SPX3200LCD | DISPLAY-VAR SPD PUMP | 942.99 |
| 25 | PTS-SPX3400DR | DRIVE-VAR SPD PUMP | 3138.99 |
| 26 | PTS-SPX3400DR2 | COVER-WIRING, VAR SPD PUMP | 151.99 |
| 27A | PTS-SPX3400Z1ECM | MOTOR-2.7 HP VAR SPD,SQ FLG PERM MAG | 1371.99 |
| NS | PTS-SPX3400DRKIT | KIT-WALL MOUNT, VAR SPD PUMP | 207.99 |
| NS | PTS-SPX3400DRCBL | CABLE-DISPLAY, VAR SPD PUMP | 141.99 |
| NS | PTS-SPXHKIT100 | QUICK FIX KIT, TRISTAR PUMP | 72.99 |
| NS | PTS-SPX3202Z1VSPE | TRISTAR VS POWER END | 2761.99 |
| NS | PTS-SPX3200DRCC | CABLE-COMMUNICATION, VS PUMP | 74.99 |
A consolidated list of the replacement parts for the Hayward Tristar VS associated with model S23200VSP. NS stands for Not Shown in the diagram. If you're having trouble findind the part you need please feel free to reach out to one of our representatives in the contact section below.
Features
Dimensions
Product Videos
Manuals
 Hayward Tristar VS Owners Manual |
